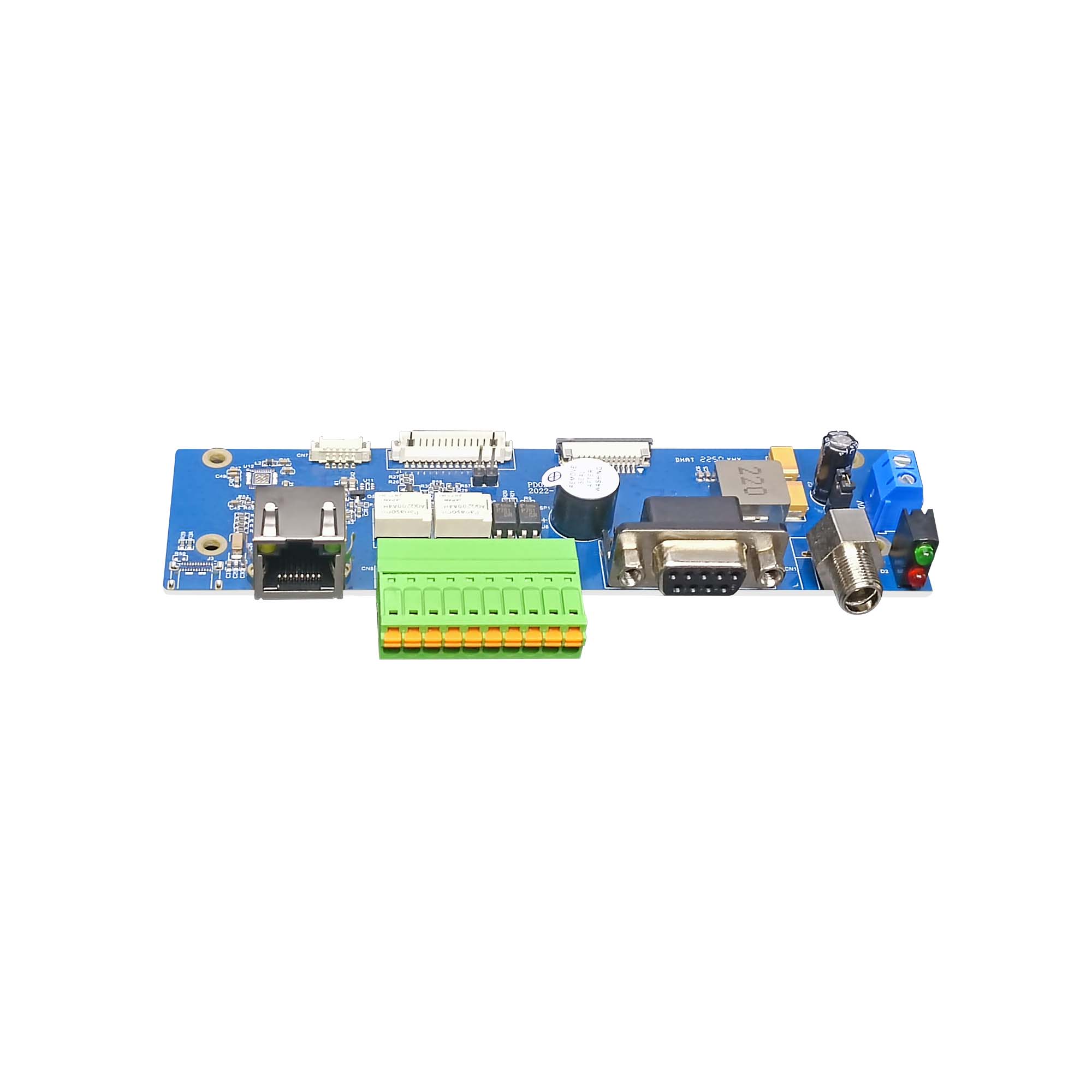

PD03
PD03
PD03

1、Support modules ZKV901, ZKV904, ZKV908, and ZKV916

2、2-channel relay output, 2-channel optocoupler input interface

3、Supports network ports and RS232

Share：
Product Detail
  • Physical parameters
    Size40mm×142mm×20mm
    Weight0.1kg
  • Power supply parameters
    Equipment power24V/2A
    Power consumption13W@30dBm ， 20W@35dBm (Connected to ZKV series modules)
  • Interface
    RS232115200bps(default)
    RJ4510M/100M adaptive
    I/O2-channel optocoupler input (0~24V), 2-channel relay output (DC) 1A@30V ，AC  0.3A@125V）
    RF interface15PIN board to wire interface (multi-channel module), 12PIN FPC interface (single channel module), 5PIN board to wire interface (5V auxiliary power supply)
  • Environmental parameters
    Storage Temp-40℃～+85℃
    Operating Temp-20℃～+70℃
    Humidity5%RH～95%RH（non-condensing）
